Description

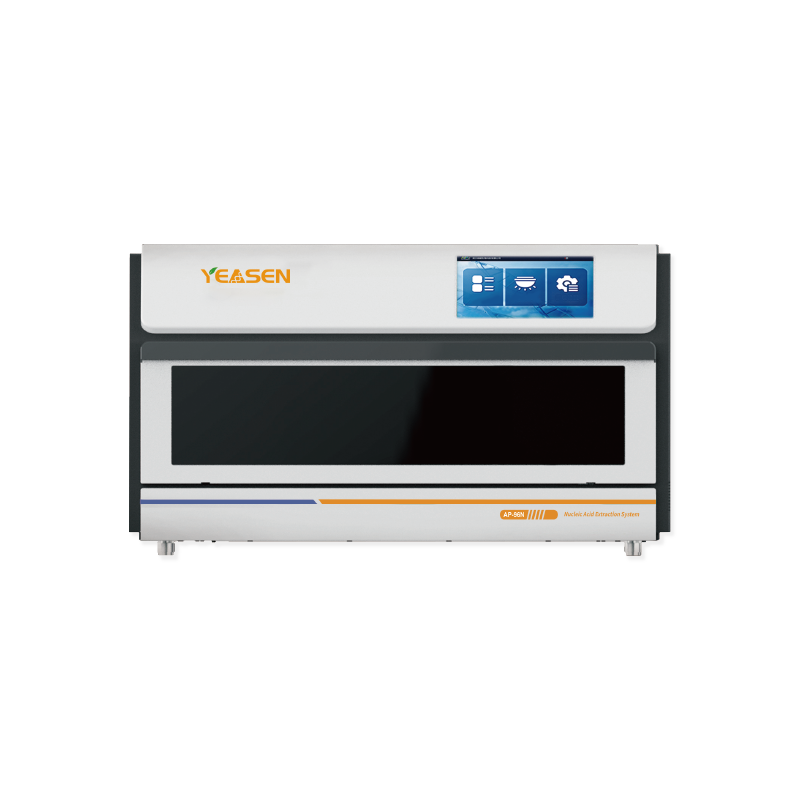

The AP-96N is an integrated automated nucleic acid preparation system capable of purifying nucleic acids from a wide range of biological samples, including whole blood, viruses, tissues, plants, bacteria, and cultured cells. Equipped with intelligent pre-installed extraction protocols, together with compatible magnetic bead-based nucleic acid extraction kits and consumables, the system delivers an efficient, automated, and high-quality nucleic acid purification solution for downstream genetic analysis and molecular diagnostics.
Single-Run Testing Requirement:
Requires 1 × 96-well magnetic rod sleeve (Cat# 83661ES) and 6 × 96-well deep-well plates, round-bottom (Cat# 83671ES).
Features
- High-throughput: Process 1–96 samples at once—ideal for large batches
- Magnetic bead extraction: High recovery (>99%) and high-purity DNA/RNA
- Smart & automated: Color touchscreen, customizable programs, auto-resume after power loss
- Low contamination risk: Built-in UV sterilization + HEPA-filtered airflow
- Reliable design: Modular linear motion system for stable, long-life performance
- Works with many sample types: Whole blood, viruses, tissues, plants, bacteria, cultured cells
- Optional heating/cooling: 4–120°C temperature control
Specifications
| Item | specification |
|
Sample Throughput |
1–96 samples per run |
|
Processing Volume |
20 μL – 10 mL |
|
Magnetic Bead Recovery Rate |
>99% |
|
Magnetic Field Strength |
Permanent magnet ≥ 4,500 Gs |
|
Operating Ambient Temperature |
10–40 °C |
|
Temperature Control Module |
4–120 °C, dual-zone temperature control |
|
Dimensions (L × W × H) |
870 mm × 450 mm × 502 mm |
|
Weight |
50 kg |
Components
|
Components No. |
Name |
80510ES01 |
|
80510 |
96-Channel Automated Nucleic Acid Extraction Instrument |
1 Set |
Storage
This product should be stored at room temperature.
Intended Use
For the extraction and purification of nucleic acids from clinical samples.
Working Principle
Figure 1. Schematic Diagram of the Working Principle of the Fully Automated Nucleic Acid Extraction Instrument
Documents:
Safety Data Sheet
80510_MSDS_HB260203_EN.PDF
Manuals
