Description

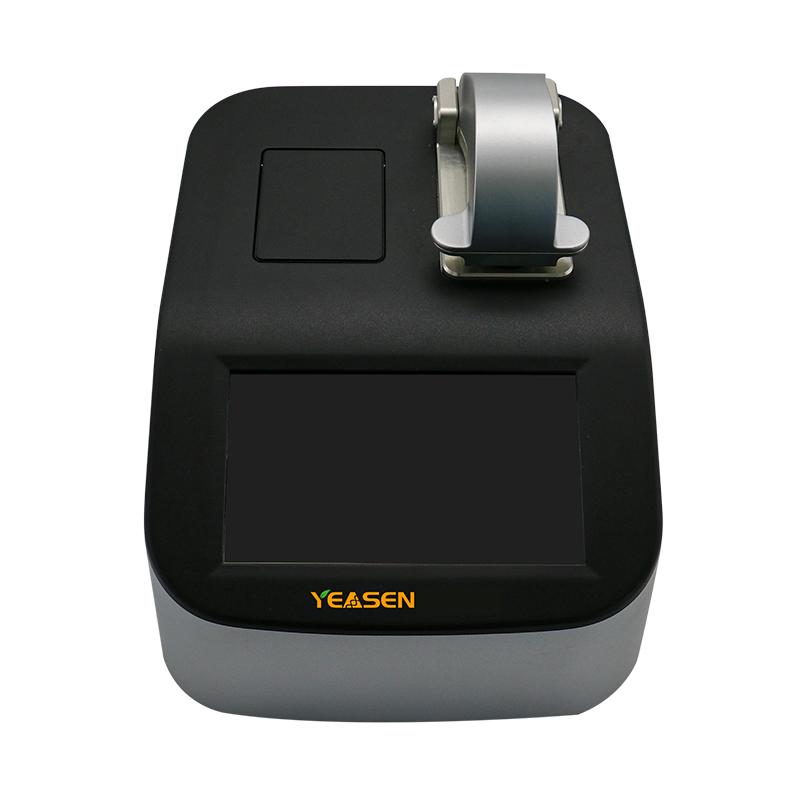

The YSNano-100 from Yeasen is a standalone full-wavelength (190–850 nm) microvolume UV-Vis spectrophotometer that does not require a connected computer. It enables rapid and accurate measurement of nucleic acids, proteins, and cell suspensions. Equipped with a cuvette mode, it can also measure the concentration of bacterial cultures and other liquid media.
The microvolume spectrophotometer requires only 0.5–2 μL of sample and delivers high accuracy and reproducibility. The sample retention system utilizes surface tension to hold the sample between two detection fibers, allowing measurement of highly concentrated samples without dilution. After measurement, the sample can either be wiped off or recovered using a pipette. This instrument is suitable for a wide range of applications, including clinical disease diagnosis, blood transfusion safety, forensic identification, environmental microbiology testing, food safety testing, and molecular biology research.
Features
Fast: Quickly and accurately measures sample concentration within 3 to 5 seconds;
Low Sample Volume: Requires only 1–20 μL of sample to obtain accurate results;
Precise: High detection sensitivity makes it an effective tool for quantifying low-concentration nucleic acids and proteins;
Specific: Enables specific detection of dsDNA, ssDNA, RNA, and protein, with measurement results unaffected by other substances present in the sample;
Flexible: The fluorometer is compatible with quantification reagents from various brands.
Specifications
|
Model |
YS Nano-100 |
Operating Interface |
7-inch touchscreen, 1024×600 high-resolution display |
|
Wavelength Range |
190–850 nm |
Sample Volume |
0.5–2 μL |
|
Pathlengths |
0.2 mm, 0.05 mm, 0.02 mm (for high-concentration measurements), 1.0 mm (for standard-concentration measurements) |
Nucleic Acid Detection Range |
2–27,500 ng/μL (dsDNA) |
|
Light Source |
Xenon flash lamp |
Detector |
HAMAMATSU UV-enhanced CMOS linear sensor |
|
Absorbance Accuracy |
±1% (at 7.332 Abs, 260 nm) |
Absorbance Precision |
0.003 Abs (0.2 mm pathlength) |
|
Absorbance Range (Equivalent to 10 mm) |
0.04–300 A |
Measurement Time |
<5 s (at 0.2 mm pathlength) |
|
OD600 Mode |
Absorbance range: 0–4.000 Abs |
Power Adapter |
24 V DC |
|
Stability: [0,3) ≤0.5%, [3,4) ≤2% |
Power Consumption |
25 W |
|
|
Repeatability: [0,3) ≤0.5%, [3,4) ≤2% |
Standby Power |
5 W |
|
|
Operating System |
Android OS |
Dimensions |
200 mm × 260 mm × 165 mm |
|
Weight |
5 kg |
|
|
Components
|
Components No. |
Name |
80481ES03 |
|
80481 |
Microvolume Spectrophotometer(Without Fluorescence) |
1 Set |
Structural Diagram
