説明

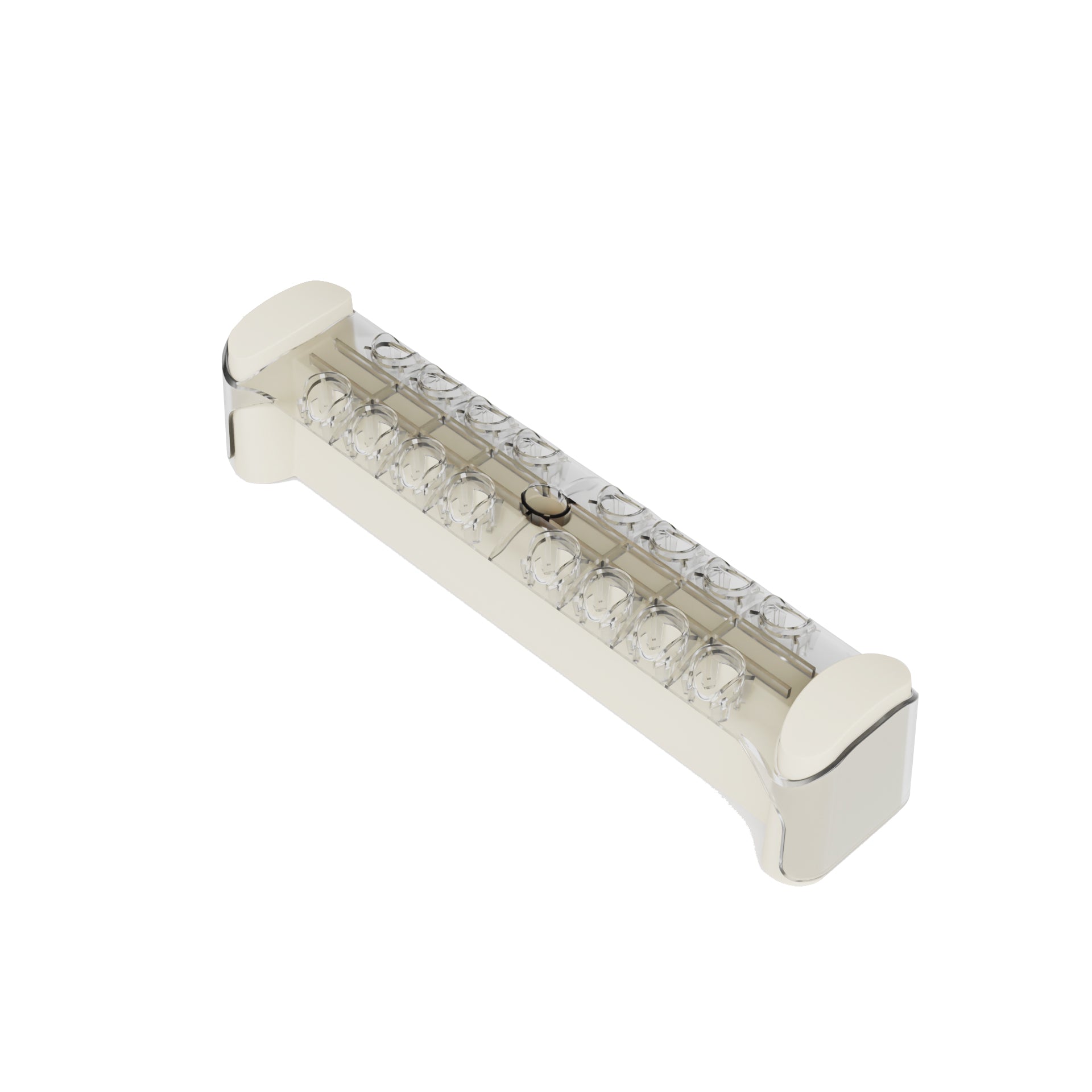

Designed for 1.5 mL and 2.0 mL centrifuge tubes, this stand features 16 positions and high-strength magnets. It is ideal not only for routine magnetic bead-based nucleic acid isolation and purification but is also highly recommended for NGS library preparation workflows, including nucleic acid sample purification and size selection. The device features a specialized locking and release mechanism, allowing for easy placement and secure fixation of centrifuge tubes.
Warranty: 1-year warranty.
Features
Working Volume: Compatible with 0.1–2.0 mL.
16-Position Capacity: Features 16 independent magnetic slots. Each slot includes a locking mechanism to secure capped centrifuge tubes, allowing the processing of 1 to 16 samples simultaneously.
Tube Compatibility: Fits both 1.5 mL and 2.0 mL centrifuge tubes.
Independent Magnetic Modules: Each slot is controlled by an independent magnet module, ensuring isolated magnetic bead separation for each sample.
Rapid Separation: Both sides of the magnetic core accommodate 1.5 mL/2.0 mL tubes. When placed close to the core, magnetic beads are attracted to the tube sidewall within 15 seconds, achieving efficient separation from the supernatant.
High Magnetic Strength: With a magnetic field strength exceeding 5300 Gauss and a 4-pole magnet design per module, it ensures concentrated bead capture, effectively minimizing bead and sample loss.
High Efficiency: Achieves a magnetic bead separation efficiency of over 98%.
Components
|
Components No. |
Name |
80469ES03 |
|
80469 |
1.5 mL / 2 mL Metal Magnetic Stand |
1 Set |
Storage
Shipped and stored at room temperature.
Figure
Notes
1. This product is for research use only.
2. Please operate with lab coats and disposable gloves，for your safety.
3. Do not autoclave Yeasen magnetic stands. If necessary, clean by wiping with a clean cloth dampened with water or a mild detergent.
4. To ensure optimal performance, do not use Yeasen metal magnetic stands at temperatures above 50°C (122°F). If the stand has been stored at low temperatures (e.g., -20°C), allow it to return to room temperature before use. Please note that exposure to low temperatures may cause a reduction in magnetic strength.
Product Selection Guide
|
Cat. No. |
Product Name |
Positions |
Working Volume |
Peak Magnetic Force |
Recommended Consumables |
|
80460ES |
PCR Metal Magnetic Stand |
7-13 |
0.5-1.5 mL |
/ |
7×1.5 mL EP tubes, 13×0.2 mL EP tubes, 13×0.5 mL EP tubes |
|
80469ES |
1.5 mL / 2.0 mL Magnetic Stand |
16 |
1.5-2.0 mL |
>5300 GS |
16×1.5 mL EP tubes, 16×2.0 mL EP tubes |
|
80462ES |
96-Well Metal Magnetic Stand |
96 |
0.1-0.2 mL |
/ |
PCR 8-strip tubes, Skirted/Semi-skirted 96-well plates |
|
80463ES |
5 mL Metal Magnetic Stand |
1 |
0.1-5 mL |
>8000 GS |
5 mL FACS tubes (max sorting aperture: 13 mm) |
|
80464ES |
5 mL / 15 mL Metal Magnetic Stand |
4 |
5-15 mL |
>4000 GS |
5 mL FACS tubes, 15 mL centrifuge tubes |
|
80465ES |
50 mL Metal Magnetic Stand |
2 |
5-50 mL |
>3000 GS |
50 mL centrifuge tubes |
|
80466ES |
24-Head PCR / Deep Well Plate Magnetic Stand |
24 |
0.1-2 mL |
>5500 GS |
96-well 1.2 mL shallow plates, 2.0 mL deep well plates, 96-well U-bottom microplates, and 0.2 mL PCR plates |
|
80467ES |
Universal Sorting Stand |
/ |
/ |
/ |
/ |
|
80468ES |
M1 Sorting Magnet (Single Channel) |
1 |
/ |
>5500 GS |
MS columns, Large Cell columns, M-type chromatography columns |
Documents:
Safety Data Sheet
Manuals
